High Frequency Edge Gluing Press

Brand Name: SAGA
Model Number: SP20-SA SP30-SA
Place of Origin: China
Minimum Order Quantity: 1set
Delivery Time: 30 Days
Payment Terms: TT/LC
Supply Ability: 200 Set per year
Packaging Details: Seaworthy packing

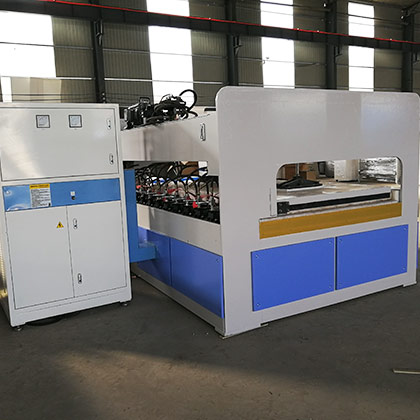

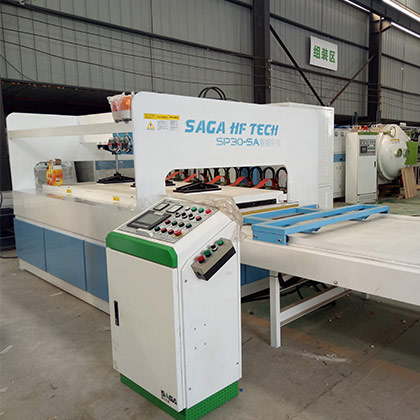

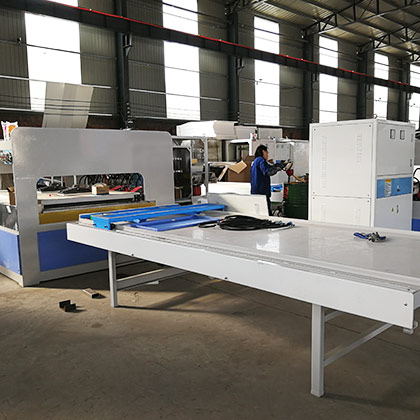

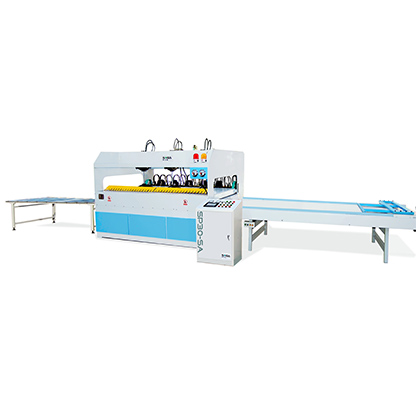

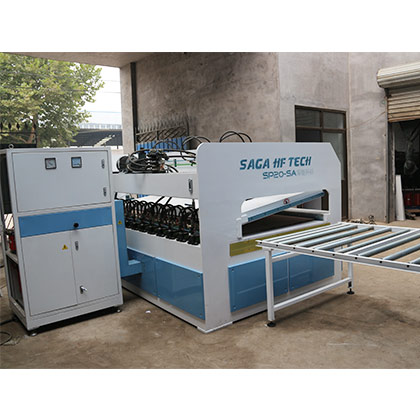

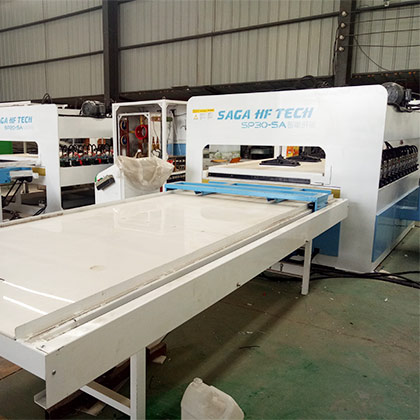

High frequency edge gluing press,also called wood board edge joining machine, combines the high frequency heating with 2 direction press, it is suitable for finger joint or edge glued board jointing or gluing the rim of solid wood door or other wooden blocking gluing.

1.Character of High Frequency Edge Gluing Press

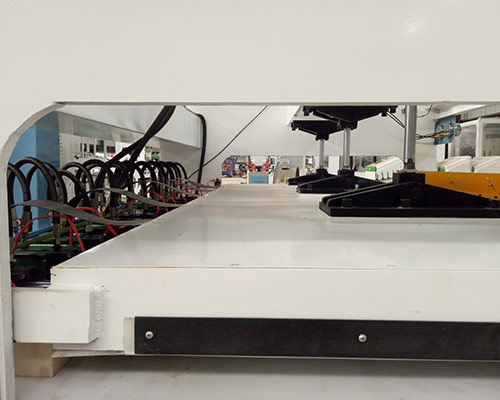

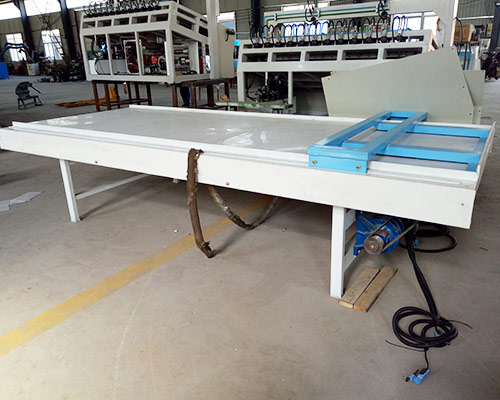

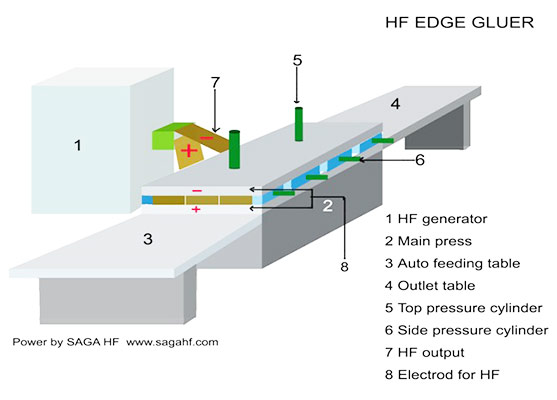

Place the glued wood slats into the feeding table, starts high frequency edge gluer, feeding cart will push the slats to the curing table, PLC sends signal to the hydraulic parts, top press plate goes down to make the wood slat flat and uniform, then back pusher pushes in to make the wood panel well glued, high frequency power starts automatically to heat the glue according to set time, after heating finish,pressure keep and high frequency stop, system starts the program of cooling, after that. back pusher moves back, top plate raise, one cycle finish. When the second feeding start, the end-finished panel or board is pushed out of curing table and fall to outlet table, then next gluing cycle starts.

2.Character of SAGA High Frequency Edge Gluing Press

A.PLC automatic control with auto feeding way
B.Electro components mostly use European brand like Schneider,Omron to enable stable working.

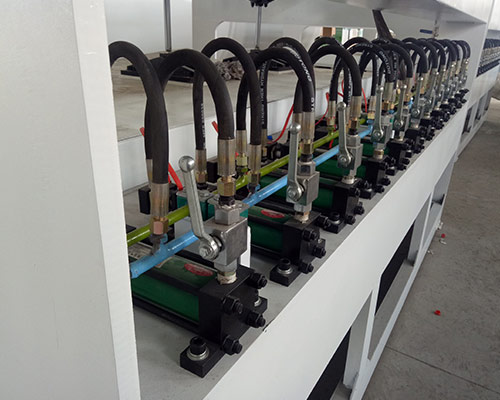

C.Strict quality control and regulation on mechanical spare like hydraulic.

3.Basic Parameter

Model SP20-SA SP30-SA
Horizontal Pressure Diameter of Cylinder 50mm  50mm
Number of Cylinder 12 pcs 12 pcs
Total pressure 36T 36T
Vertical Pressure Diameter of Cylinder  50 mm 50mm
Number of Cylinder 3 pcs 3 pcs
Total pressure 9T 9T
Max Gluing length ≤2440mm ≤2440mm
Max Gluing Width ≤1220mm ≤1220mm
Continuous gluing size 1250mm*6000mm or more
Max Gluing Thickness 8mm-50mm 8mm-100mm
HF Output Power 20Kw 30Kw

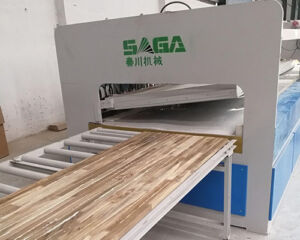

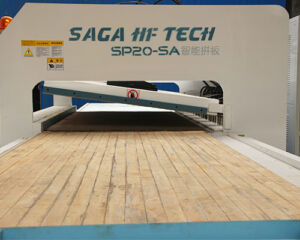

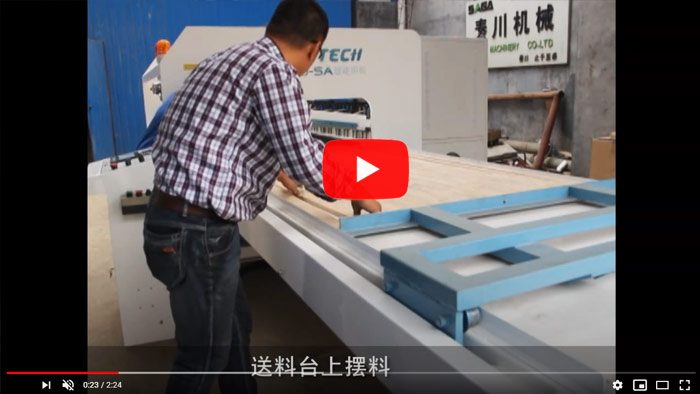

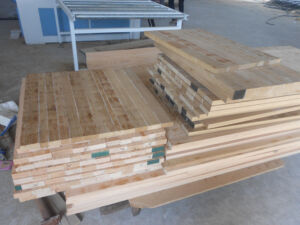

Actual Working

Over All Size Chart
