High frequency generator,is also called radio frequency generator, is a plant which can turn normal electric power to high frequency electro magnetic power, apply this power to the load equipment or electrode, the water or glue molecule within the work piece is polarized and rapidly change direction or move follow the frequently change of the electro magnetic power, thus cause suddenly friction, this friction between molecule makes the temperature raise, thus the water vaporized and glue bond.
High frequency generator is suitable for curved plywood forming or wood panel jointing or hard wood drying, it’s a core plant for high frequency machinery.
1.Character of SAGA High Frequency Generator

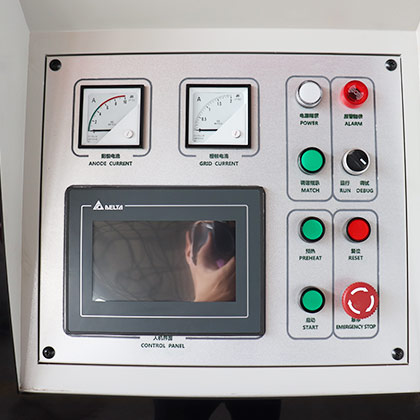

A.More scientific design, simple and humanistic control panel.
B.Control electric spare parts are mostly use Schneider or Omron brand. stable and safe.
C.Light and button all use national top brand.
D.Transformer as well as other small spare like cooling fan or even wire or screw are national standard or international standard.
2.Basic Parameter

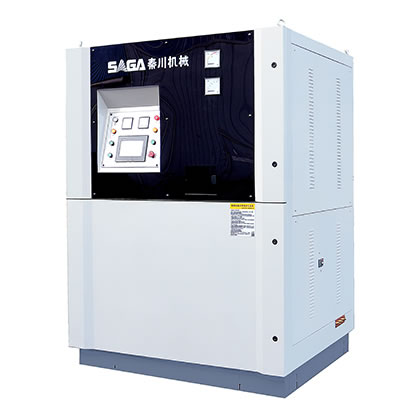

HF20-SA Generator
| Power | 380V, 50Hz,3 phase, 4 Wire |
| Input Power | 30KVA |
| Output Power | 20KW |
| Oscillation | 6.78Mhz |
| Protection | Overload protection, wind cooling pressure detection, filament 2 stages stars, lose phase protection |
| Tuning Mode | Variable capacitor |
| Cooling Mode | Force wind cooling |
| Overall Size | (L*W*H) 950*1000*1850mm |
| Weight | 600kgs |
HF30-SA Generator
| Power | 380V,50Hz, 3 phase, 4 Wire |
| Input Power | 40KVA |
| Output Power | 30KW |
| Oscillation | 6.78Mhz |
| Protection | Overload protection, wind cooling pressure detection, filament 2 stages stars, lose phase protection |
| Tuning Mode | Variable capacitor |
| Cooling Mode | Force wind cooling |
| Overall Size | (L*W*H) 1000*1100*1850mm |
| Weight | 650kgs |

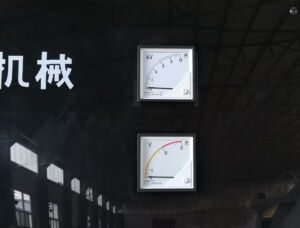

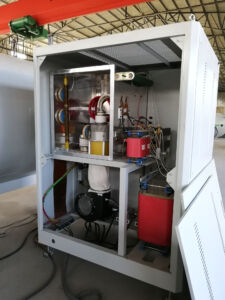

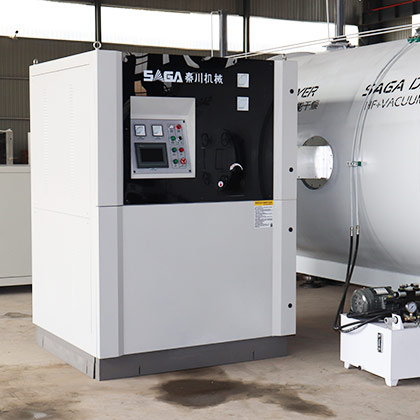

Detail
Application

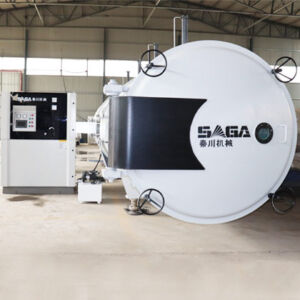

Wood drying Bent wood pressing Wood board edge jointing
Package
