High Frequency Curved Plywood Press

Brand Name: SAGA
Model Number: YX80-SA
Certification: CE
Place of Origin: China
Minimum Order Quantity: 1set
Delivery Time: 40 Days
Payment Terms: TT/LC
Supply Ability: 200 Set per year
Packaging Details: Seaworthy packing


High frequency curved plywood press applies high frequency generator to hydraulic press, by mold and electro, it transfers the high frequency power to the work piece to achieve the function of fast gluing and forming. It’s suitable for BENT PLYWOOD CHAIR, BENT OR ARC PLYWOOD FOR THE FURNITURE OR BED or other bent plywood products like CLOTH HANGER OR SURFACE OF MUSICAL INSTRUMENT.

1.Charactor of High Frequency Curved Plywood Press

A.Fast and uniformly heating
B.Bending shape is stable, not easy to change de-lamination.
C.High frequency power is a selectively heating power, it concentrates only on water or glue. wood cannot consume high frequency power, so it is effective and power saving.
D.Wooden or MDF mold used, much economic than metal mold if shape is frequency changed.

2.Basic Parameter

Model YX80-SA YX150-SA
HF Generator 20KW,2 OUTPUT 30KW,2 OUTPUT
Oscillation 6.78MHz 6.78MHz
Cylinder 80T,2PCS 150T,2PCS
Strock of Cylinder 600mm 600mm
Press working size 1600*800mm 2500*1300mm
Power of Hydraulic 7.5KW 7.5KW
Opening of Plate 1100mm 1100mm
Packing Foam and plastic Foam and plastic
Delivery 40 working days 40 working days
Overall Size 2300*800*2200mm 2900*1300*2200mm
Gross Weight 8T 17T

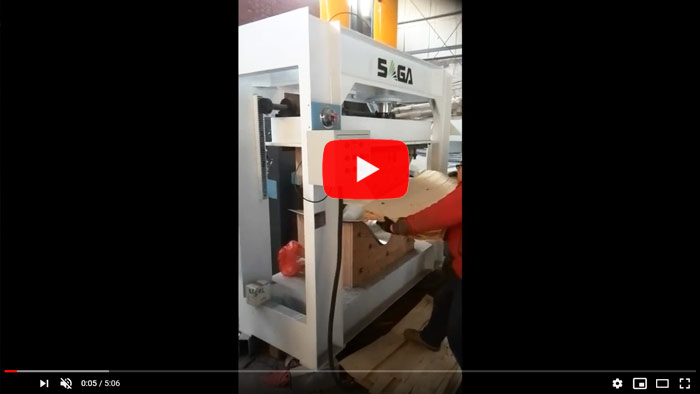

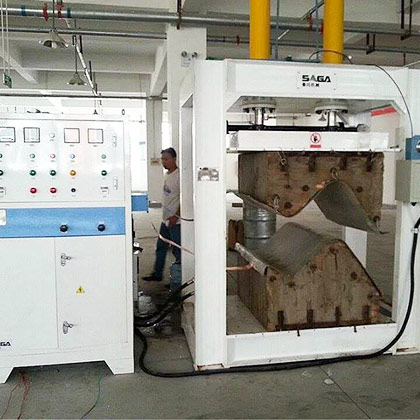

Actual Working

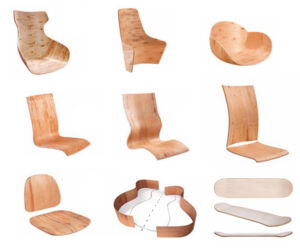

Bent Wood Samples

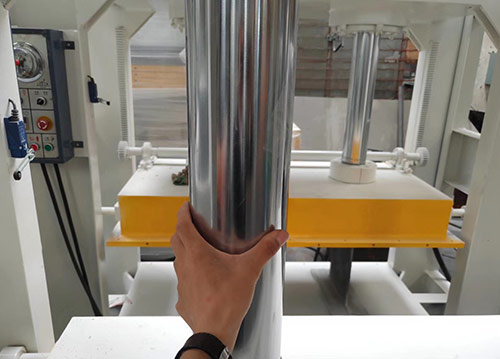

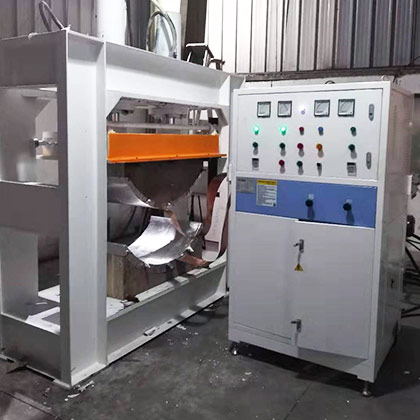

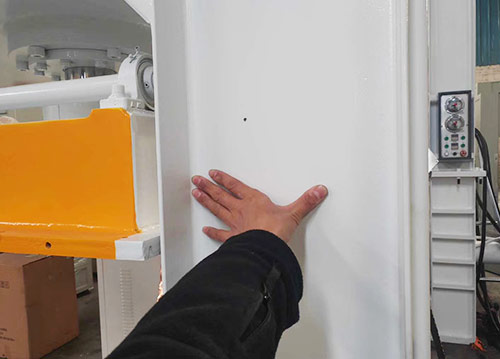

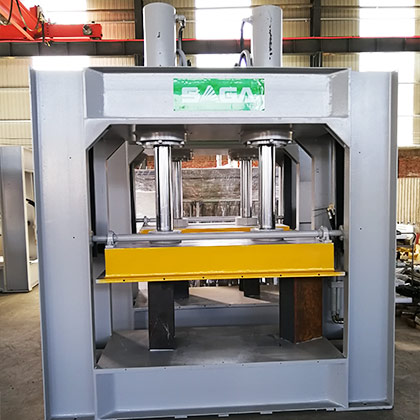

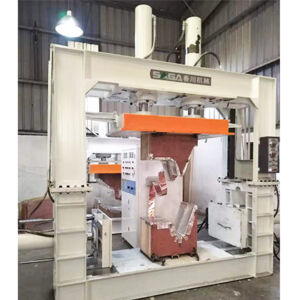

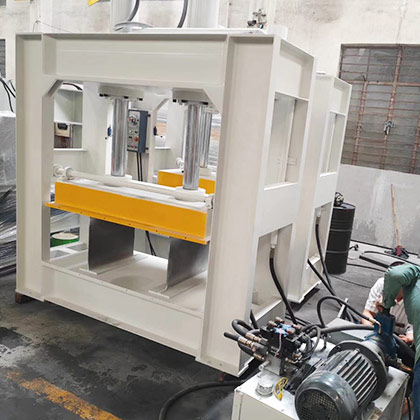

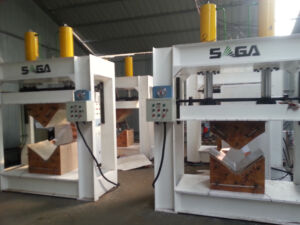

Press Machine Details

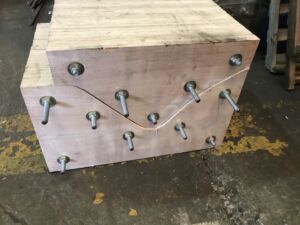

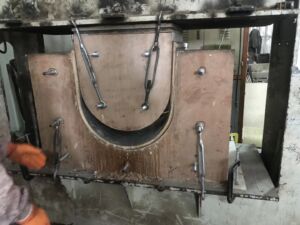

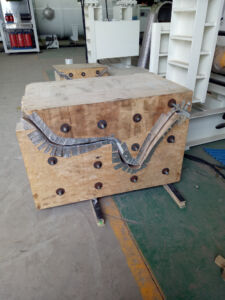

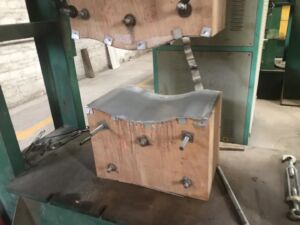

The Wooden Mold

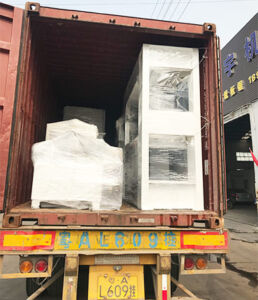

Packing And Shipping
















1.How about the press table size?

Our standard size are 1600x800mm and 2500x1300mm.Customized size is also available.

2.What are included in 1 set machine?

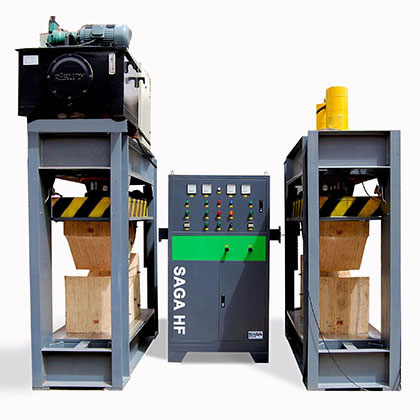

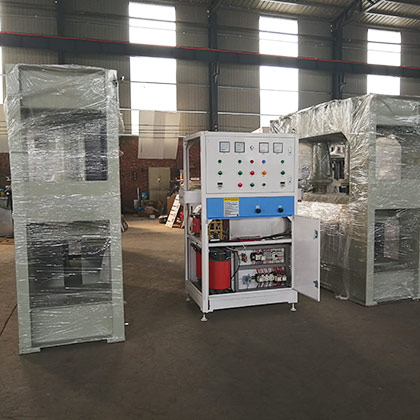

The working type of the machine is “one drive two”,that means one set HF generator drives two sets hydraulic press machine.

3.What is the material of the mold?

It is wood.

4.How long does it take to press one chair seat?

For standard small chair,it wil take around 3-4 minutes.
